Engineered Electrical Solutions
for Mission-Critical Applications

Leading manufacturer of custom control panels, load banks, and electrical power solutions. Expert design consultancy and end-to-end project execution from concept to commissioning.

View Our Capabilities Request Quote
ISO Certified
1+ Years Experience
5+ Projects Delivered

Our Core Offerings

Comprehensive electrical and electronic solutions tailored to meet your specific requirements

Load Banks

Custom-designed resistive, inductive, and combined load banks for generator, UPS, and power system testing

  • Resistive Load Banks
  • Inductive Load Banks
  • Combined Load Banks

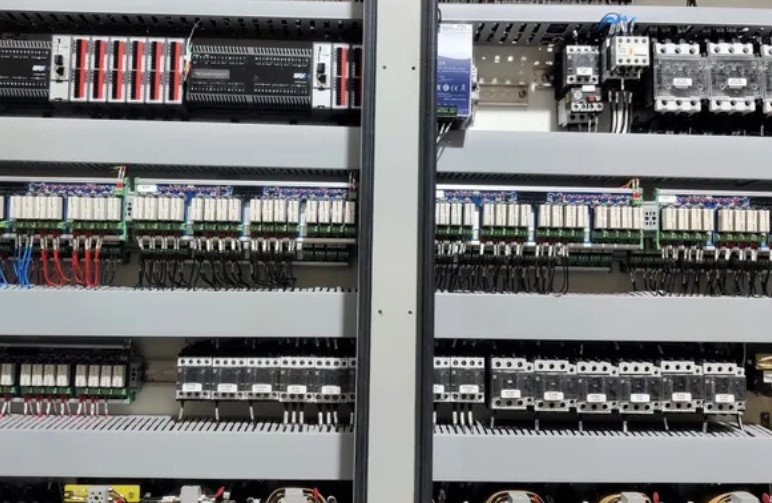

Custom Control Panels

Design and build of PLC, relay-based, and automation control panels

  • PLC-based Systems
  • Relay Logic Panels
  • Automation Solutions

Power Distribution Panels

Safe and efficient power distribution solutions for industrial applications

  • Industrial PDPs
  • Safe Distribution
  • Efficient Design

Test Systems

Customized electrical and electronics testing systems for validation and performance analysis

  • Validation Testing
  • Performance Analysis
  • Custom Systems

Motor & Drive Control

Control panels and systems for motors, VFDs, and drive applications

  • VFD Integration
  • Motor Controls
  • Drive Systems

Featured Products

Industrial-grade load banks engineered for precision testing

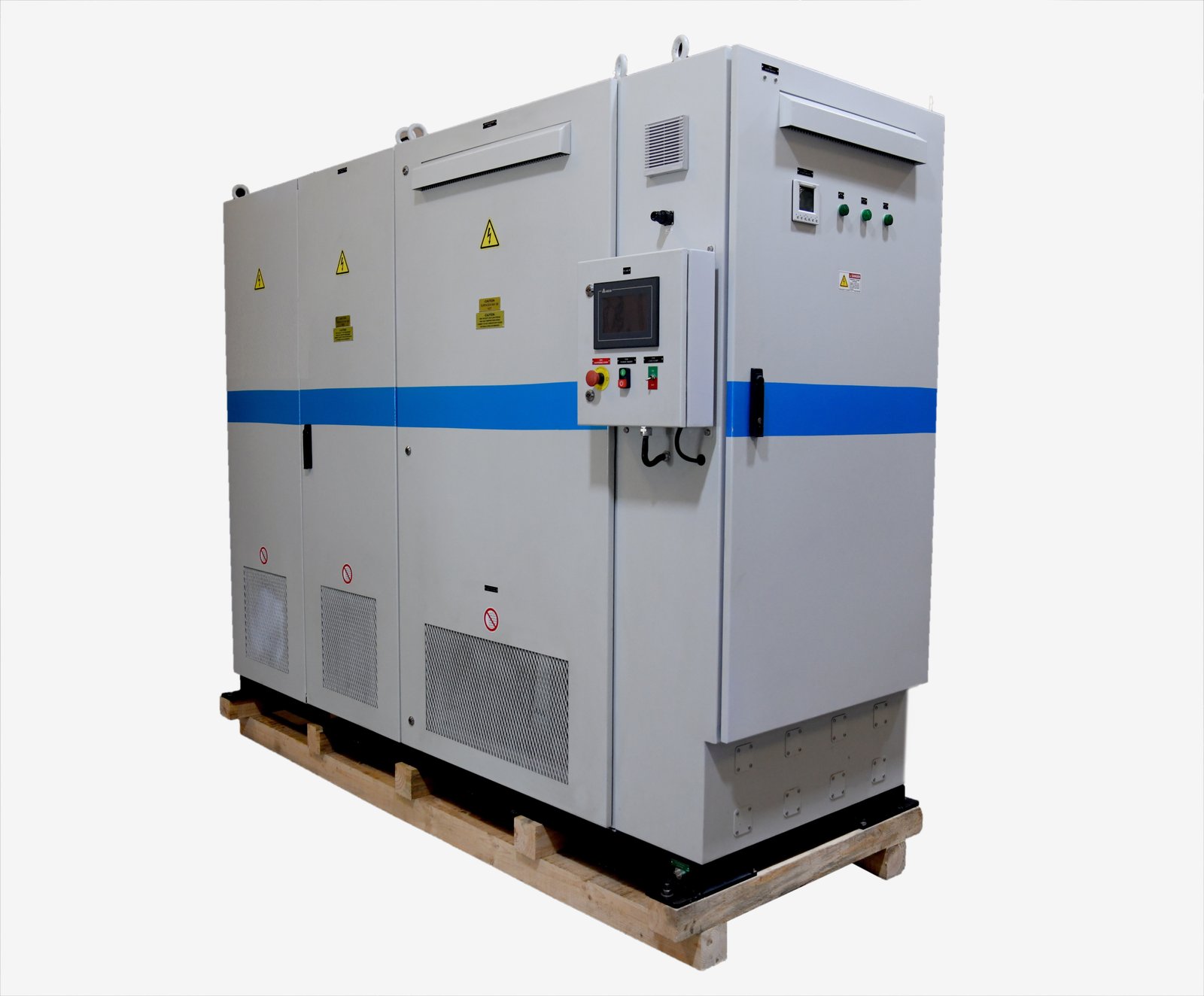

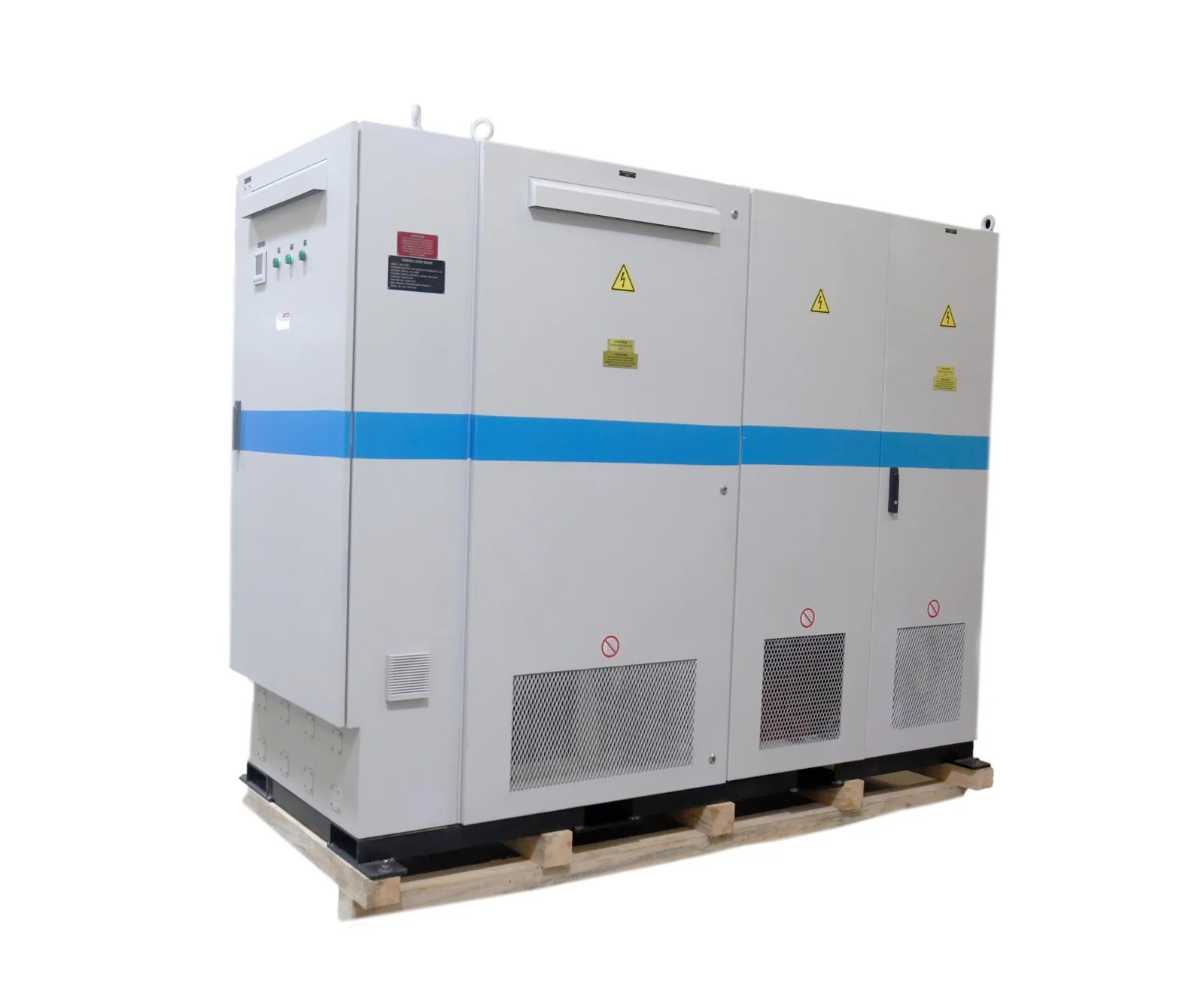

Resistive 750 kW Load Bank

Resistive 750 kW Load Bank

Industrial automation and Data Acquisition System software with comprehensive capabilities to control load bank. Provides enhanced load control along with support for transient speed instrumentation, full data acquisition reporting with graphical displays and real-time data recording.

Technical Specifications

Apparent Power750 kVA
Resistive Power600 kW
Reactive Power687 kVAR
Test Voltage440V ±10%
Control Voltage440 Vac
Frequency50 Hz
Phase Configuration3 Phase, 3 Wire
Airflow Volume4 x 12000 m³/min
CoolingVertical Upward Air Forced Cooling
Dimensions2 x 1800mm x 1200mm x 2500mm
Forklift Holes with ISO Lifting Points
TestCraft PC Software Included
Request Quote

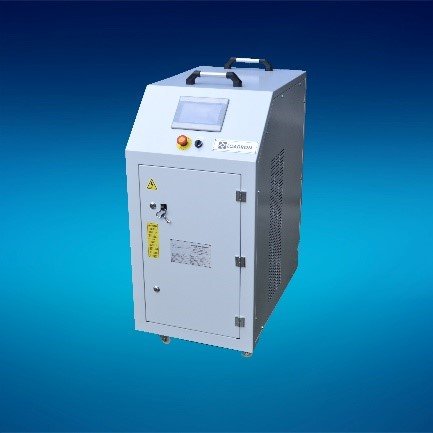

180 kW AC DC Load Bank

Model: LBAD-180R

Versatile AC/DC load bank with advanced control systems including Manual, PLC, HMI, and optional LabView software integration. Features real-time display of current, voltage, power, and electrical performance indicators with comprehensive system monitoring.

Technical Specifications

Dimensions738 x 445 x 712mm
AC Rating230V AC (180kW) ±10%
DC Rating90V DC (300A) ±10%
Control Voltage230V AC ±10%
Frequency50 Hz
Phase Configuration1 Phase, 2 Wire
Load Step (AC)0.6 kW Resolution
Load Step (DC)1 Amp Resolution
Resistor MaterialNi-Cr Alloy (±5%)
Duty CycleContinuous 150kW

Control Systems

Manual ControlSwitches
PLC ControlDelta PLC System
HMI ControlRemote Desktop (15 Ft. Harness)
Remote PC (Optional)LabView Software
CommunicationModbus TCP (RJ45)
Thermal Cut-Out Protection
ISO Lifting Points
Copper Bus Bar Connections
ISO 9001:2015 Certified
12 Months Warranty

Included Documentation

Operation & Maintenance Instructions, Electrical Schematic Diagram

Request Quote

Technical Excellence & Quality Standards

We combine engineering excellence, quality components, and industry standards to provide dependable and efficient systems. Our capabilities extend beyond manufacturing to include technical and design consultancy as well as end-to-end project execution management.

  • Custom Engineering Solutions
  • Industry-Standard Compliance
  • Rigorous Quality Control
  • Expert Technical Support
  • End-to-End Project Management
  • Precision-Engineered Systems

Power Generation

Generators, turbines, and power plants

Data Centers

Critical infrastructure and UPS systems

Industrial Manufacturing

Factory automation and controls

Oil & Gas

Hazardous area solutions and controls

Our Project Execution Process

Seamless delivery from concept to commissioning with expert project management

1

Consultation

Understanding your requirements

2

Design

Engineering solutions tailored to you

3

Manufacturing

Precision fabrication & assembly

4

Testing

Rigorous quality validation

5

Commissioning

On-site installation & setup

6

Support

Ongoing technical assistance

5+
Projects Completed
1+
Years of Excellence
5+
Industries Served
